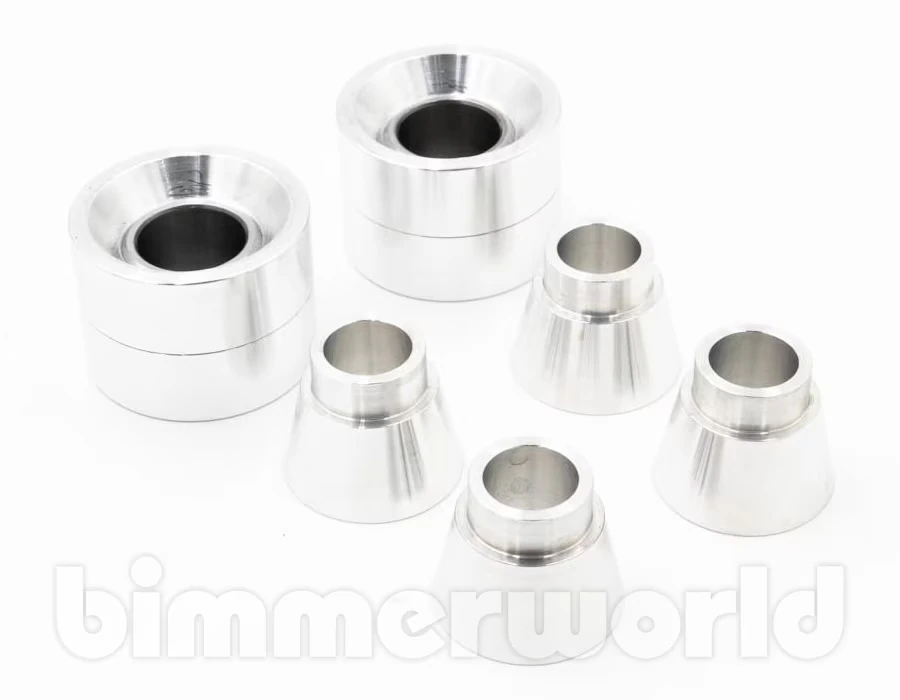

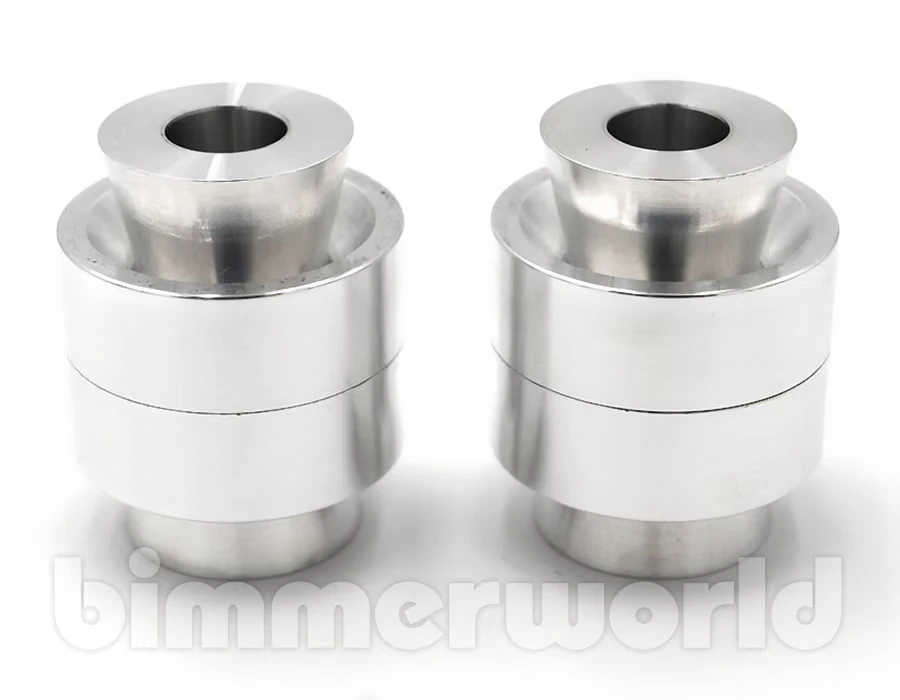

SPL Rear Trailing Arm Knuckle Bearings (Pair) - F22/F3X

Pair of spherical bearings connect the rear trailing to the knuckle on all F22/F23 2-series, F30/F31/F34 3-series, and F32/F33/F36 4-series models.

+ -
+ -
+ -
+ -
+ -
+ -
+ -
+ -

  •

Price:
$152.99

These Rear Traction Arm Knuckle Bushing replace the rubber factory bushing attaching the lower control arm to the knuckle with a low friction teflon-lined spherical bearing.

Replacing the OEM component with this bushing will allow for less deflection under heavy load, and less bind as the arm travels through its suspension. SPL uses the largest possible FK bearing in this location for increased longevity and lower NVH. The housing for the bearing is machined out of 6061-T6 aluminum and is CNC cut to +/- .001" tolerance to insure proper fitment.

Replaces BMW part # 33326792551 (33-32-6-792-551).



BMW Fitments:
2 Series
F22 / F23 (2014-2021) > 228i
F22 / F23 (2014-2021) > 228i xDrive
F22 / F23 (2014-2021) > 230i
F22 / F23 (2014-2021) > 230i xDrive
F22 / F23 (2014-2021) > M235i
F22 / F23 (2014-2021) > M235i xDrive
F22 / F23 (2014-2021) > M240i
F22 / F23 (2014-2021) > M240i-Racing
3 Series
F30 / F31 / F34 (2012-2019) > 320i
F30 / F31 / F34 (2012-2019) > 320i xDrive
F30 / F31 / F34 (2012-2019) > 328d
F30 / F31 / F34 (2012-2019) > 328d xDrive
F30 / F31 / F34 (2012-2019) > 328i
F30 / F31 / F34 (2012-2019) > 328i xDrive
F30 / F31 / F34 (2012-2019) > 330i
F30 / F31 / F34 (2012-2019) > 330i xDrive
F30 / F31 / F34 (2012-2019) > 335i
F30 / F31 / F34 (2012-2019) > 335i xDrive
F30 / F31 / F34 (2012-2019) > 340i
F30 / F31 / F34 (2012-2019) > 340i xDrive
F30 / F31 / F34 (2012-2019) > Hybrid 3
4 Series
F32 / F33 / F36 (14-20) > 428i
F32 / F33 / F36 (14-20) > 428i xDrive
F32 / F33 / F36 (14-20) > 430i
F32 / F33 / F36 (14-20) > 430i xDrive
F32 / F33 / F36 (14-20) > 435i
F32 / F33 / F36 (14-20) > 435i xDrive
F32 / F33 / F36 (14-20) > 440i
F32 / F33 / F36 (14-20) > 440i xDrive
