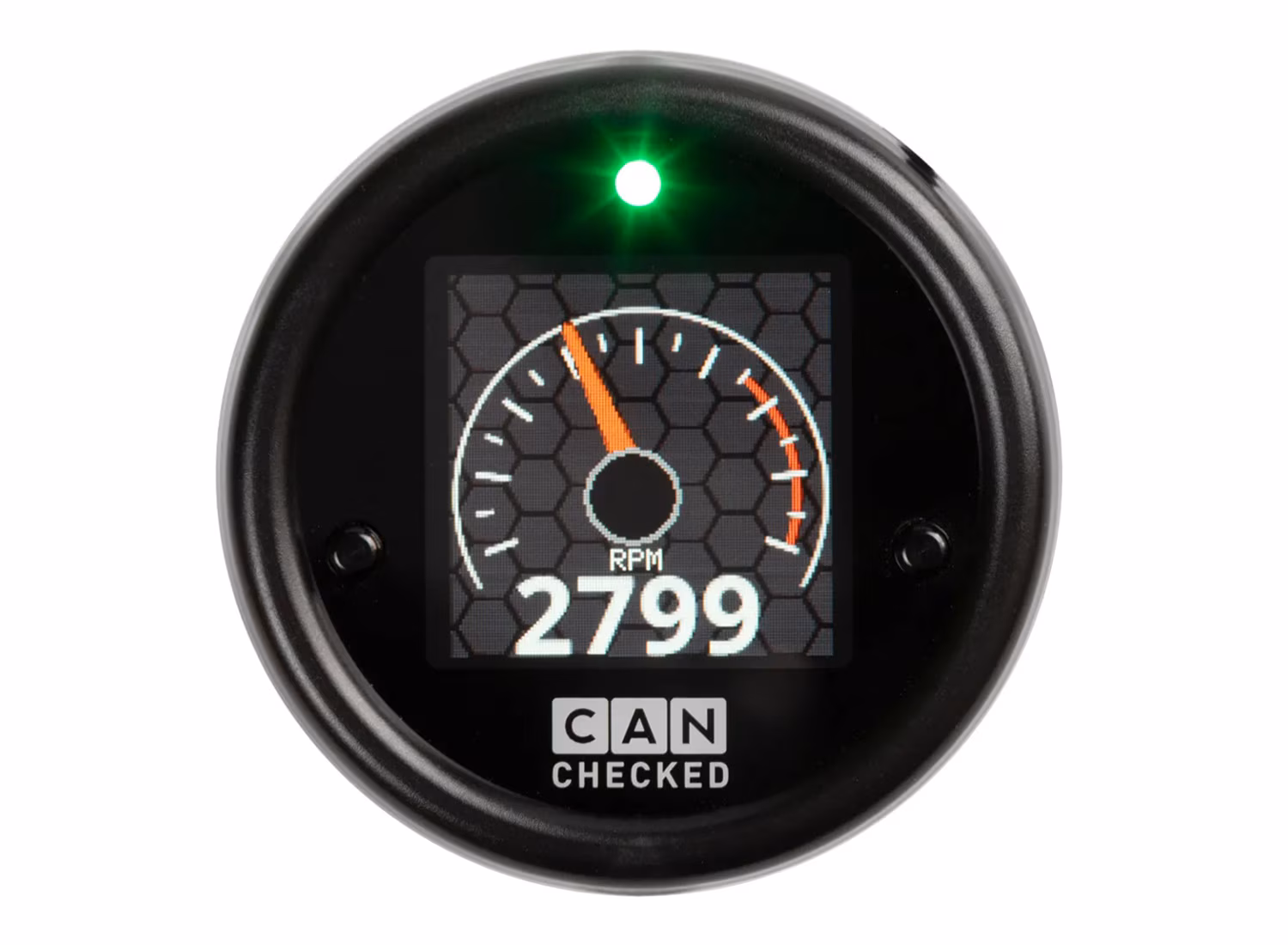

A powerful digital version of the traditional 52mm analog gauge with both analog and CAN display abilities. This is a standalone or alternative to the CANchecked 2.8" or 3.2" LCD displays in a more classic appearance. You can mount it in any gauge pod set up for Stack, VDO, or other 52mm gauges. It includes 6 analog inputs as well as the ability to tap in to a CAN-Bus data stream (a separate CANchecked license may be required).
CAN sources already setup and included: BMW E46, all other BMWs and other cars from approx 2008, Ecumaster Classic and Black, DTAfast, Haltech v2, Hondata, KMS van Kronenburg, LinkECU, MaxxECU, Motec M1, Emtron, Megasquirt 2 and 3, Syvecs, Trijekt, VW/AUDI PQ34/PQ35.
Data logging is also available with the purchase of a license from CANchecked.

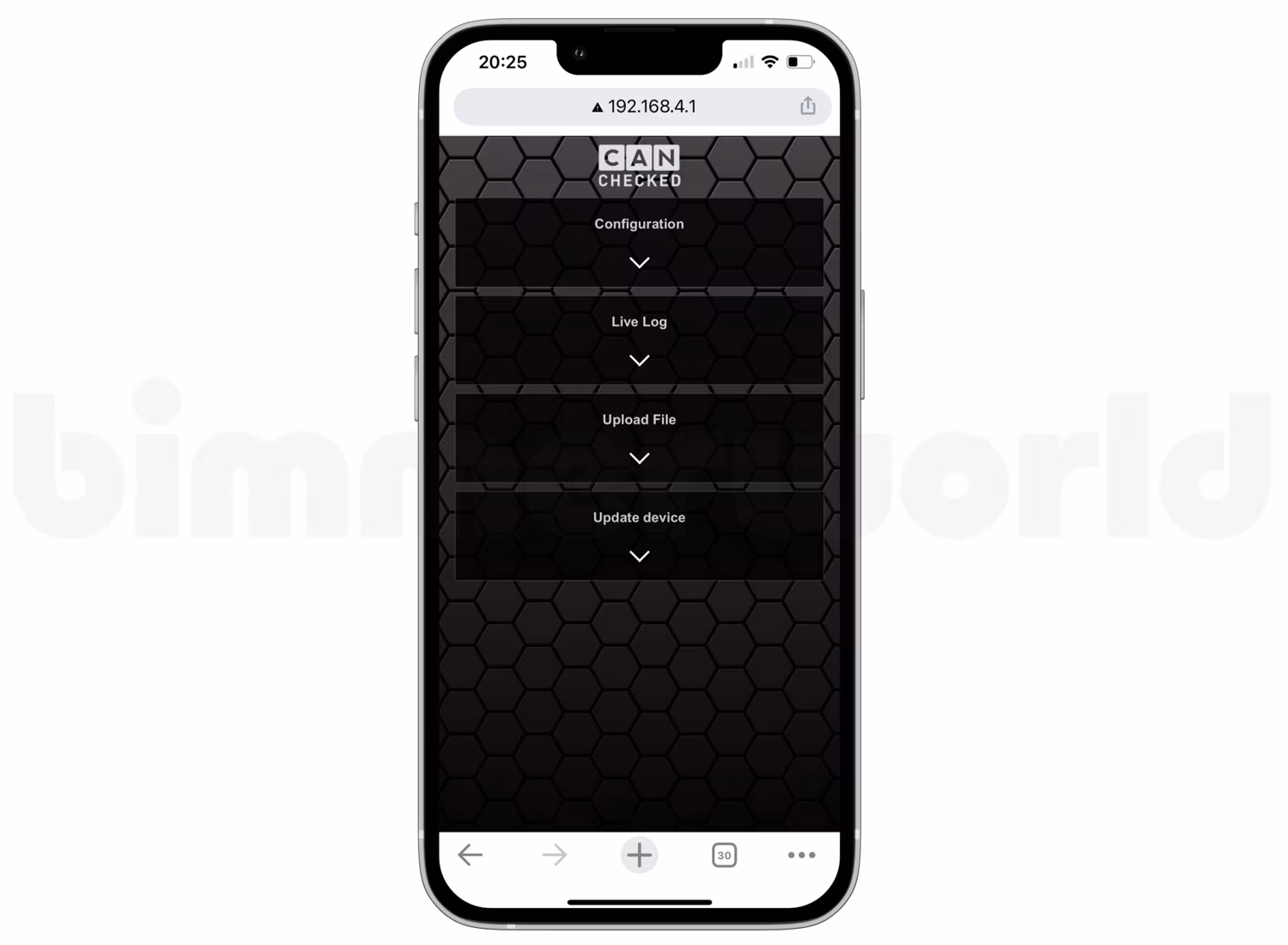

The MFD15 has a customizable display with colors, layout, images, alarms, and more all customizable via smartphone app or Windows PC app.

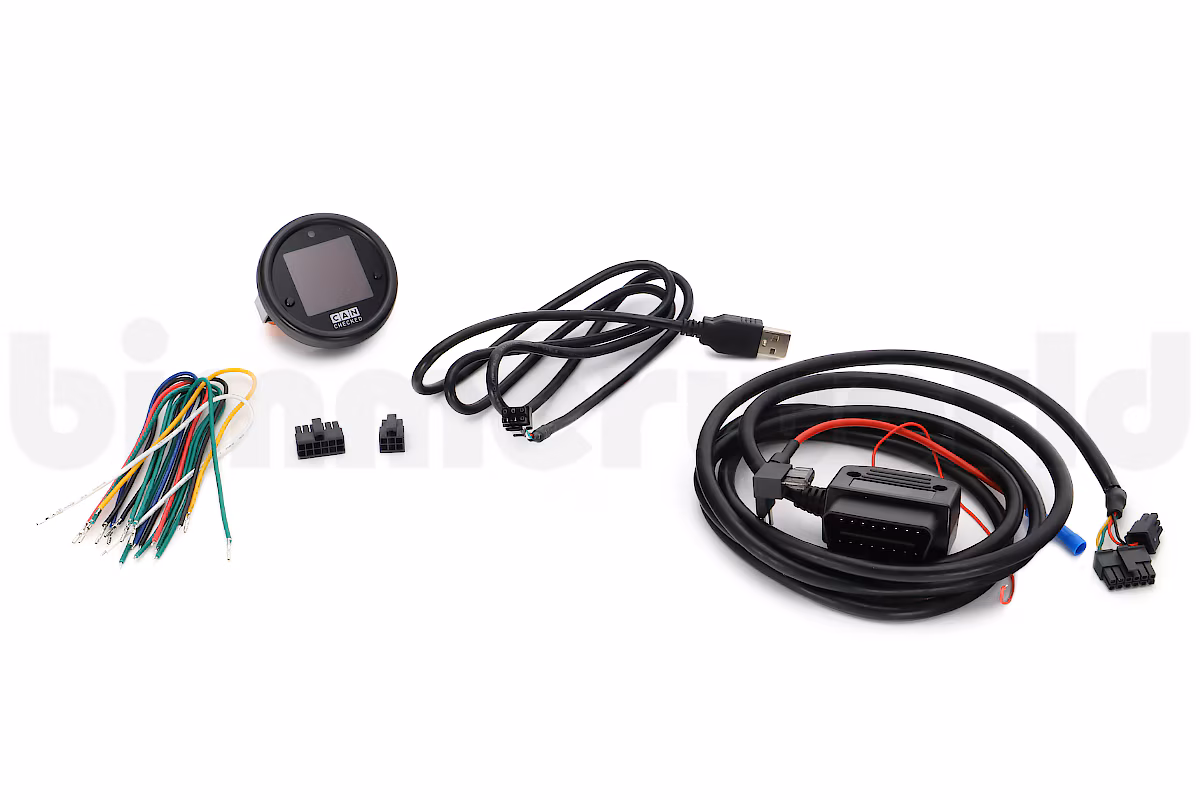

Included:

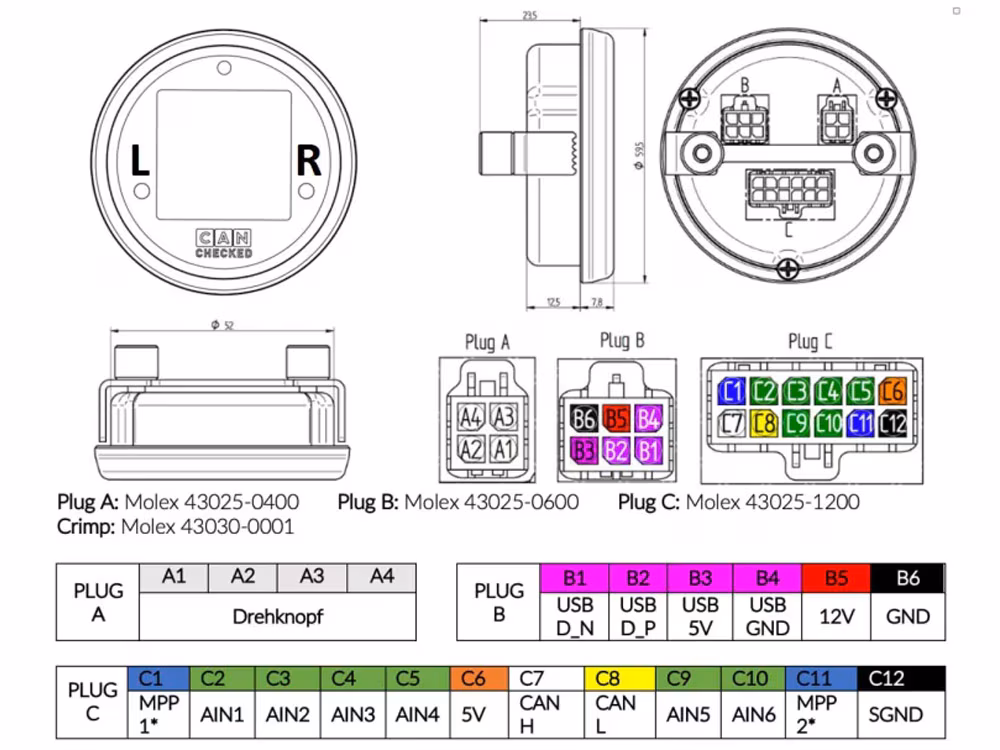

– Plug B (6 pole)
– Plug C (12 pole)
– pre-crimped connection cables for power supply, CAN bus, analog inputs, 5V and sensor ground
– Pins for crimping yourself
– two 1K resistors (for pull-up for NTC sensors)
Any sensors can be connected via the six analog inputs - both linear 0-5V and NTC sensors are supported.
